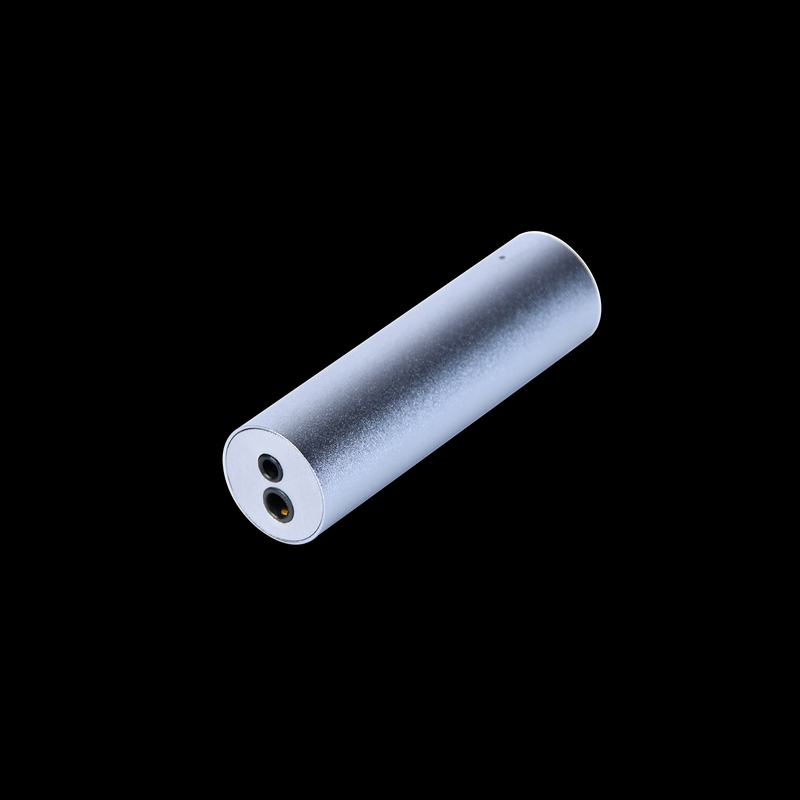

Ha12 mobile phone decoding earphone product features:
A. Ak4493 decoding, dual operational amplifier design, support PCM and DSD audio hard decoding , Two customized hifi operational amplifier ICs with high power output, clear, bright and sweet sound
1,PCM :16/24/32bit,44.1/48/88.2/96/176.4/192/352.8/384/705.6/768KHz
2,DSD :DSD64/128/256/DSD512
3. Support modes of DSD Audio: DOP (dsd64 / 128 / 256), native (dsd64 / 128 / 256 / 512)
B. Compatible with windows and MAC OS、Android
1. Android devices need to support OTG and UAC
2. The device needs to be connected with apple camera components
C. Balanced and unbalanced double export design, various playing methods and high playability
1, 3.5mm unbalanced output
2, 2.5mm balanced output
Technical parameters related to balance and Unbalance:
A. Operating voltage (VBUS): 4.7 ~ 5.3v
B. Output level (0dB):
2Vrms RL = 600 Ω, non-equilibrium;
4Vrms RL = 600 ohms, balanced
C. Flatness of frequency response (20Hz ~ 20kHz), unbalanced: + 0.05, - 0.3dB
D. Noise level (without recording weight):
4.5uv, unbalanced;
8.1uv, balanced
E. Signal to noise ratio (SNR): 117dba
F. Total harmonic distortion + noise (THD + n):
-103dB RL = 600 Ω, 0dB- 105dB RL = 32 Ω, 100MW; Nonequilibrium
-110dB RL = 600 Ω, 0dB- 105dB RL = 32 Ω, 100MW; balance
G. Maximum output power:
100mW RL = 32 Ω, non-equilibrium;
180mW RL = 32 Ω, balanced;
50MW RL = 300 Ω, balanced
